Spiral Wound Gaskets

0 out of 5

( There are no reviews yet. )

Style : 440

Flexiteck spiral wound gasket is manufactured in Round, Obround, Square, Oval, Diamond and Pear shapes. Sizes : All sizes available for ANSI, API, JIS, MSS & DIN Flanges.

SWP gasket is suitable for use across a wide pressure range and is therefore virtually universally applicable. This can be used to seal fluid pressures up to 250 bar and cryogenic temperatures as low as -200ºC and up to elevated temperatures of 1000ºC.

Our “Graphite”, in accordance with SHELL MESC Specification has SHELL, VALERO, CHEVRON, PHILIPS 66 & McJUNKIN approval.

Description
Size Guide
Reviews (0)

Description

Style : 440

Flexiteck spiral wound gasket is manufactured in Round, Obround, Square, Oval, Diamond and Pear shapes. Sizes : All sizes available for ANSI, API, JIS, MSS & DIN Flanges.

SWP gasket is suitable for use across a wide pressure range and is therefore virtually universally applicable. This can be used to seal fluid pressures up to 250 bar and cryogenic temperatures as low as -200ºC and up to elevated temperatures of 1000ºC.

Our “Graphite”, in accordance with SHELL MESC Specification has SHELL, VALERO, CHEVRON, PHILIPS 66 & McJUNKIN approval.

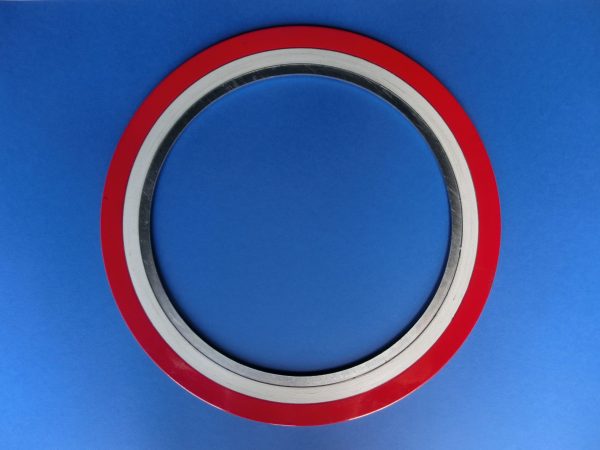

products_spiral_01 Due to its sturdy design, the spiral wound gasket is simple to install without causing damage. The outer guide ring serves to locate the spiral element centrally on the flange faces and prevent blow-out. By combining different winding materials and metals, the gasket can be tailored to a wide variety of operating conditions. Due to its non-adhesive character, the gasket is easy to remove after service. The SWP gasket does not cause any damage to the flange faces.

products-spirial11

Flexiteck Spiral Wound Gaskets are manufactured in Round, Obround, Square, Oval, Diamond and Pear shapes.
Sizes : All sizes available for ANSI, API,
JIS, MSS & DIN Flanges.

This is suitable for use across a wide pressure range and is therefore virtually universally applicable and can be used to seal fluid pressures up to 30Mpa(305bar) and cryogenic temperatures as low as -200C and up to elevated temperatures of 1000 C.

Due to its sturdy design, the spiral wound gasket is simple to install without causing damage.

The outer guide ring serves to locate the spiral element centrally on the flange faces and prevent blow-out. By combining different winding materials and metals the SWG gasket can be tailored to a wide variety of operating conditions.

Due to its non-adhesive character, the gasket is easy to remove after service. The gasket does not cause any damage to the flange faces.

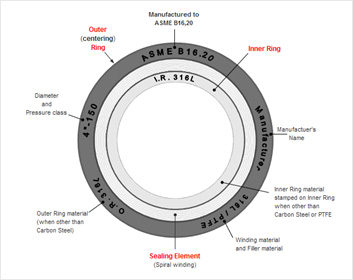

Types of Gaskets

Basic Type (R)
Consists of filler and V-shaped metal wound into a spiral shape by welding at the beginning and end of the spiral wind. Used for male & female type flanges and tongue & groove type flanges.
Inner ring Type (RlR)
Identical to (R), but fitted with an inner ring.
Outer Ring Type (CG)
The standard spiral wound gasket type consists of a wound component fitted with an outer centring ring.
Inner and Outer Ring Type (CGl)
An inner ring is added to the basic type gasket with outer ring, inner ring protects the gasket from protrusion and deformation during tightening.

Colour Code on Outer Ring (Centering)

Green – SS316L/Graphite                Deep Blue – SS321/Graphite
Red – SS316L/Asbestos                  Orange – Monel/Graphite
Yellow – SS316L/PTFE                     Beige – Hastelloy/Graphite
Black – Duplex/Graphite                    Purple – Titanium/Graphite
Brown – SS347/Graphite                  Silver – Alloy/Graphite
Pink – SS304L/Graphite                    White – Inconel/incoloy/Graphite
Turquoise – Nickel/Graphite             Lt. Blue – SS317L/Graphite
Off white – SS316L/Ceramic             Lt. Green – SS316L/MICA

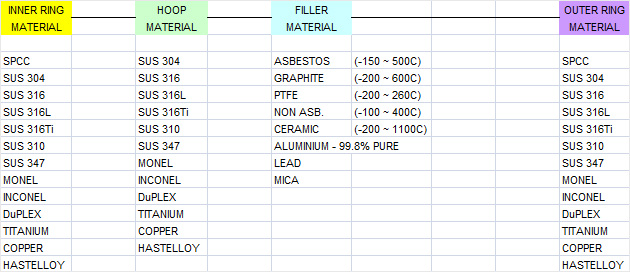

TYPES OF SPIRAL WOUND GASKETS

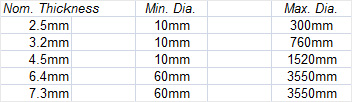

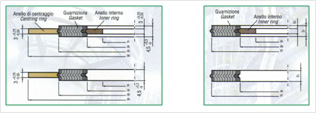

DIMENSIONS

Normally supplied as follows:

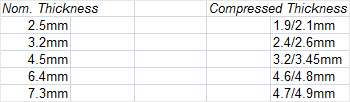

GASKETS COMPRESSION & CHOICE OF THICKNESS

FLANGE STANDARDS

Flexiteck spiral wound gaskets can be manufactured in accordance with all relevant gasket standards to suit the following flange designations :
ANSI B16.5 / API 601/ ASME 16.20
BS 1560 / BS3381
BS 10
API 605 (ASME B16.47 SERIES B)
MSS SP 44 (ASME B16.47 SERIES A)
BS 4504
DIN FLANGES
JIS FLANGES
FRENCH NF STANDARD

N.B. Gaskets for non-standard flanges are also readily available.
