Jointing Sheet Products

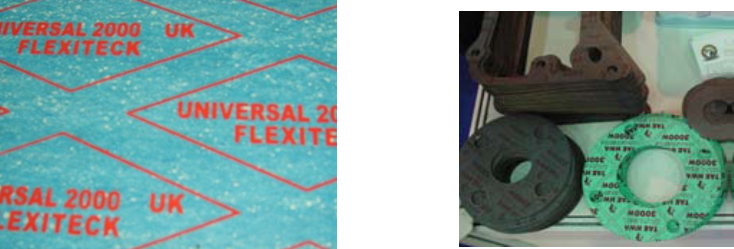

COMPRESSED SYNTHETIC FIBRE JOINTING SHEET
ASBESTOS-FREE

THE PRODUCT - STYLE : Flexiteck Universal 2000




Our Flexiteck Jointing sheet passed ASTM E1131-08 Fire Safe, analysis was performed by SGS TGA

Flexiteck CSF jointing sheets are manufactured from a viscous granular mixture of high strength short fibres, heat-resistant fillers and elastomeric binders, which is vulcanised into sheet form, under the pressure of two counter-rotating steel rollars(calender). The result is a line of highly versatile gasket materials, widely used with pipes and pressure vessels all over the world, thanks to their ability to effectively seal over an extremely broad range of service conditions.The fibres are the most crucial component. They must have high modulus and tensile strength, thermal and chemical stability, and capacity to adhere with the other components.


SEALING CONDITIONS : Lubricating Oil, Fuel, Animal
Oil, Organic Solvents, Etc.
Water, Hot Water, Hot Oil,
Oil Gas, Salt Solution.
Mild Acids And Inert Gases.
TEMPERATURE : -50Deg. C to 350 Deg. C
PRESSURE : 60 kg.f/cm2
SPECIFIC GRAVITY : 1.8 - 2
TENSILE STRENGTH : Longitudinal 285 (kg/cm2) min.
Transversal - 115 (kg/cm2) min.
COMPRESSIBILITY : 7 - 17% (ASTM F 36)
RECOVERY : 40% (ASTM F 36)
TYPICAL PROPORTIES AFTER Cooling Water - 15
FLUID IMMERSION (THICKNESS
INCREASE) %
FLEXIBILITY : No Break
APPROVAL AND COMPLAINCE WITH ASTM F 104 P1141A, JIS R 3453 CL 3 , KS L 5406 CL 3
INT'L SPECIFICATIONS :
IGNITION LOSS : 38% Max
DENSITY : 1.5 - 1.7 g/cm3
COUNTRY OF ORIGIN : UK
SHEET SIZE : Standard Dimension : 1500 x 1500mm
Upon Request : 1500 x 3000mm, 1500 x 4500mm
1500 x 1100mm
Tolerance : + - 50mm
SHEET THICKNESS : 0.3 ~ 6mm
For Tolerance : <1mm + - 0.1mm
For Tolerance : >1mm + - 10%
SURFACE FINISH : 4AS Anti-Stick Coating On Both Sides Is
Standard On Most Styles
PTFE, Graphite Or Silicone Coating Is
Available Upon Request


Service limits are given for proper sealing conditions and gasket design. Max. temperature and pressure limits do not apply simultaneously. Lower limits must be considered when sealing aggressive media, or when thermal or mechanical disturbances are relevant. For application below -50deg. C the gasket keeps its effectiveness provided that it is installed completely dry and that flange loading is applied at room temperature.
Please note that the information here reported is based on typical results of laboratory and field tests, and it is meant to provide a non-binding guildeline for gasket selection. Given the variety of assembly and operating conditions and the multeplicity of factors affectting a gasket performance, specific applications should not be undertaken without indipendent study and evaluation. No warranty claims can be inferred from the information contained in this brochure. If requestd, we will be pleased to assist you with specific technical information and specimens for testing.






COMPRESSED SYNTHETIC FIBRE JOINTING SHEET
ASBESTOS-FREE

THE PRODUCT - STYLE : Flexiteck 2000W


Our Flexiteck Jointing sheet passed ASTM E1131-08 Fire Safe, analysis was performed by SGS TGA

Flexiteck CSF jointing sheets are manufactured from a viscous granular mixture of high strength short fibres, heat-resistant fillers and elastomeric binders, which is vulcanised into sheet form, under the pressure of two counter-rotating steel rollars (calender). The result is a line of highly versatile gasket materials with stainless steel wire-mesh inserted, widely used with pipes & pressure vessels all over the world, thanks to their ability to effectively seal over an extremely broad range of service conditions. The fibres are the most crucial component. They must have high modulus and tensile strength, thermal and chemical stability, and capacity to adhere with the other components.


SEALING CONDITIONS : Suitable For Water, Hot Oil, Oil Gas Alkali, Salt Solutions, Solvent, etc.
Not To Be Use In Steam, Strong Acid,
And Alkali, Soluble Chemicals.
TEMPERATURE : 400C
PRESSURE : 180 kg.f/cm2
SPECIFIC GRAVITY : 1.8 - 2
TENSILE STRENGTH : 16 N/mm2 (DIN 52910)
COMPRESSIBILITY : 7 - 17% (ASTM F 36)
RECOVERY : 55% Min (ASTM F 36)
ASTM OIL #3 : THICKNESS INCREASE 15% Max (ASTM F 146)
TENSILE LOSS 45% Max (ASTM F 146)
ASTM FUEL B : THICKNESS INCREASE 15% Max (ASTM F 146)
WEIGHT INCREASE 15% Max (ASTM F 146)
FLEXIBILITY : No Break
APPROVAL AND COMPLAINCE WITH INT'L SPECIFICATIONS ASTM F 104 , JIS R 3453 & KS L 5406
IGNITION LOSS : 38% Max
DENSITY : 1.7 - 2.0 g/cm3
COUNTRY OF ORIGIN : UK
SHEET SIZE : Standard Dimension : 1500 x 1500mm
Upon Request : 1500 x 3000mm, 1500 x 4500mm
1500 x 1100mm
Tolerance : + - 50mm
SHEET THICKNESS : 0.3 ~ 6mm
For Tolerance : <1mm + - 0.1mm
For Tolerance : >1mm + - 10%
SURFACE FINISH : 4AS Anti-Stick Coating On Both Sides Is
Standard On Most Styles
PTFE, Graphite Or Silicone Coating Is
Available Upon Request


Service limits are given for proper sealing conditions and gasket design. Max. temperature and pressure limits do not apply simultaneously. Lower limits must be considered when sealing aggressive media, or when thermal or mechanical disturbances are relevant. For application below -50deg. C the gasket keeps its effectiveness provided that it is installed completely dry and that flange loading is applied at room temperature.
Please note that the information here reported is based on typical results of laboratory and field tests, and it is meant to provide a non-binding guildeline for gasket selection. Given the variety of assembly and operating conditions and the multeplicity of factors affectting a gasket performance, specific applications should not be undertaken without indipendent study and evaluation. No warranty claims can be inferred from the information contained in this brochure. If requestd, we will be pleased to assist you with specific technical information and specimens for testing.

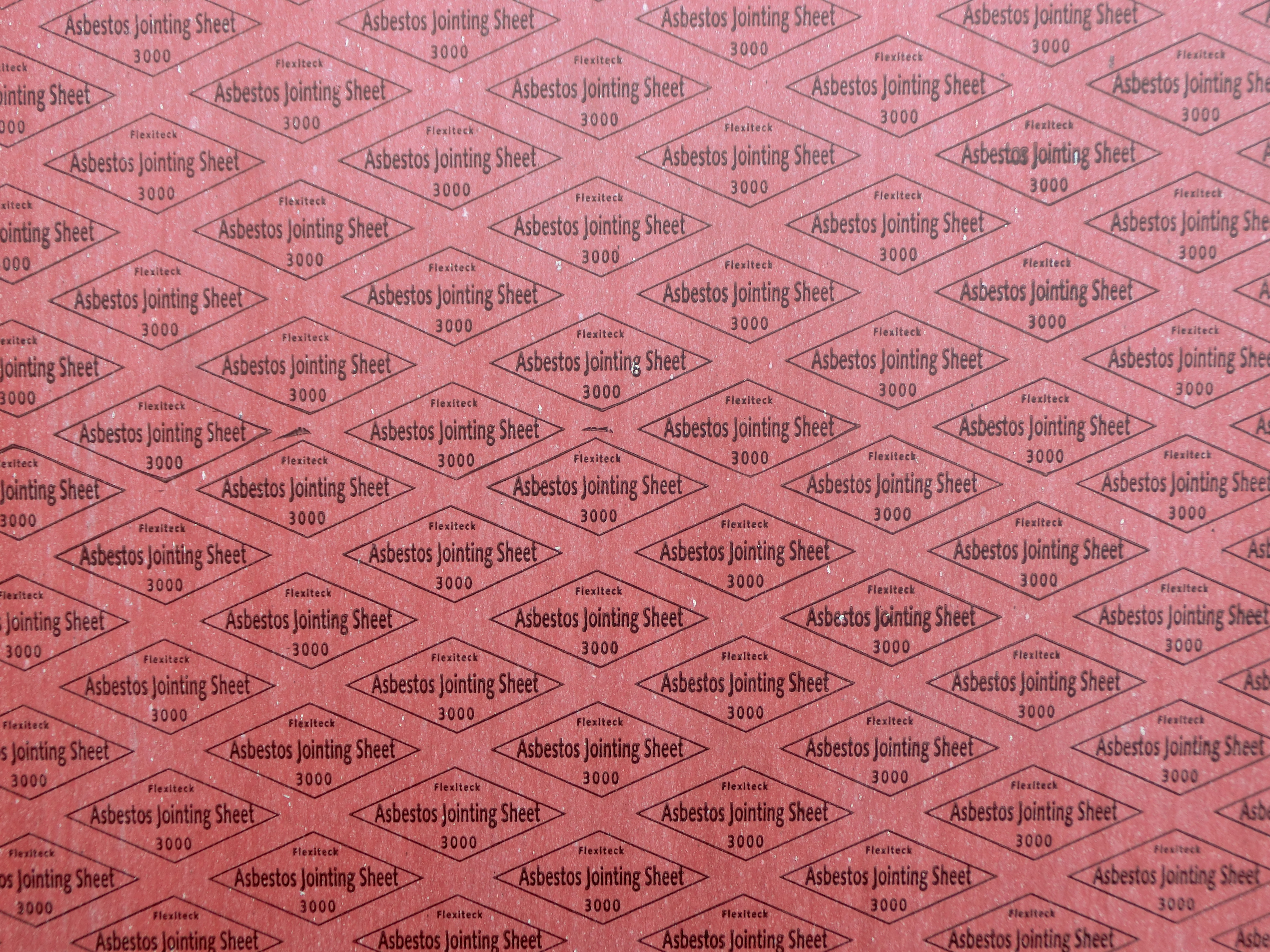

COMPRESSED ASBESTOS FIBRE JOINTINGS
THE PRODUCT - STYLE : FLEXITECK 3000 (TITAN)

Flexiteck CSF jointings are manufactured from carefully selected chrysotile fibres, intimately blended with suitable heat resisting binders and fillers and vulcanised into sheets of homogenous compositions and uniform thickness.
To avoid the necessity of producing perfecting of finish on the contact faces of a mechanical assembly, which is not only costly but quite often impracticable, a gasket from compressed asbestos fibre jointings enables a tight seal to be created and maintained between separable members. The seal is effected by the yielding, or the flow of the jointing material into the imperfections of the joint contact faces. In this way the gasket provides an unbroken barrier of homogenous structure through which no pathways exist for escape of the confined media.




SEALING CONDITIONS: Recommended For Use Against
Steam, Water, Gases, Oil And
Alkalies.
TEMPERATURE : 350C
PRESSURE : 35 KG / CM2
SPECIFIC GRAVITY : 1.8 - 2.0
COMPLIANCE WITH STD. : ASTM F104 F112000-M5
IS-2712
BS-2815B
DIN-3754
JIS-3453 Class 2
THICKNESS RANGE (MM) : 0.4 - 5.0
STD. SHEET SIZE (MM) :: 1000 X 1500 , 1250 X 1250
1500 X 1500 , 1500 X 3000
1500 X 4000
ASTM OIL NO 3 (-5 HRS/150C) : 30%
ASTM FUEL B (-5HRS/150C) : 20%
SURFACE FINISH : 4AS Anti-Stick Coating On Both Sides Is Standard
On Most Styles
PTFE, Graphite Or Silicone Coating Is Available
Upon Request



Highly specialised knowledge and technical skill is necessary to manufacture adequate grades of compressed asbestos fiber jointings to satisfy various service parameters, such as resistance to contained fluid and pulsating loads if necessary.
The choice of the grade of jointing material for any given condition is of paramount importance. A number of factors need to be taken into consideration, while the choice of the correct grade and thickness is finally made for a particular application. Resistance to attack by the confined media on the jointing material forms the sole basis of selection



COMPRESSED ASBESTOS FIBRE JOINTINGS

THE PRODUCT -  STYLE : FLEXITECK 3000W (WIRE INSERTION)
Flexiteck CSF jointings are manufactured from carefully selected chrysotile fibres, intimately blended with suitable heat resisting binders with stainless steel wire-mesh inserted & vulcanised into sheets of homogenous compositions and uniform thickness. To avoid the necessity of producing perfecting of finish on the contact faces of a mechanical assembly, which is not only costly but quite often impracticable, a gasket from compressed asbestos fibre jointings enables a tight seal to be created and maintained between separable members. The seal is effected by the yielding, or the flow of the jointing material into the imperfections of the joint contact faces. In this way the gasket provides an unbroken barrier of homogenous structure through which no pathways exist for escape of the confined media.




SEALING CONDITIONS: Recommended For Use Against Wet Steam, Water,
Gases, Alkalies Chemicals Etc. Also Suitable
Against Oil And Fuels Under Mpderate
Temperature Conditions.
TEMPERATURE : 350C
PRESSURE : 100 kg / cm2
SPECIFIC GRAVITY : 1.8 - 2.0
COMPLIANCE WITH STD. : UK Dept. Of Atomic
IS-2712
BS-2815


THICKNESS RANGE (MM) : 0.4 - 5.0
STD. SHEET SIZE (MM) :: 1000 X 1500 , 1250 X 1250
1500 X 1500 , 1500 X 3000
1500 X 4000 , 2200X 2200
ASTM OIL NO 3 (-5 HRS/150C) : 15%
ASTM FUEL B (-5HRS/150C) : 15%
SURFACE FINISH : Graphite Coating On Both Sides Is Standard
On Most Styles
PTFE, 4AS Anti-Stick Or Silicone Coating Is Available
Upon Request



Highly specialised knowledge and technical skill is necessary to manufacture adequate grades of compressed asbestos fiber jointings to satisfy various service parameters, such as resistance to contained fluid and pulsating loads if necessary. The choice of the grade of jointing material for any given condition is of paramount importance. A number of factors need to be taken into consideration, while the choice of the correct grade and thickness is finally made for a particular application. Resistance to attack by the confined media on the jointing material forms the sole basis of selection.


COMPRESSED SYNTHETIC carbon, aramid FIBRE JOINTING SHEET
ASBESTOS-FREE
THE PRODUCT


Our Flexiteck Jointing sheet passed ASTM E1131-08 Fire Safe, analysis was performed by SGS TGA

Flexiteck CSF jointing sheets are manufactured from a viscous granular mixture of high strength CARBON & ARAMID fibres, heat-resistant fillers and nitrile rubber binders, which is vulcanised into sheet form, under the pressure of two counter-rotating steel rollars(calender). The result is a line of highly versatile gasket materials, widely used with pipes and pressure vessels all over the world, thanks to their ability to effectively seal over an extremely broad range of service conditions.

The fibres are the most crucial component. They must have high modulus and tensile strength, thermal and chemical stability, and capacity to adhere with the other components.

STYLE : Flexiteck 6000

SEALING CONDITIONS : For Universal Sealing Applications, Particularly
Suitable On Saturated Steam, Gases, Oils, Fuels,
Lubricants, Weak Acids And Alkalis. Suggested In
Case The Sealed Joint Undergoes Deformations
Due To Dynamic Stress Resulting From Temperature
And / Or Pressure Variations.
TEMPERATURE : -150 C ~ 500 C
PRESSURE :100 Bar
SPECIFIC GRAVITY :1.7 (DIN 3754)
TENSILE STRENGTH :1350 lbf / in2 (DIN 52910)
COMPRESSIBILITY :11% (ASTM F 36)
RECOVERY : 45% (ASTM F36)
ASTM OIL #1 : Thickness Increase 1.0% Max.
ASTM OIL #3 : Thickness Increase 2.5% Max.
ASTM FUEL B, % :Thickness Increase 2.5% Max.
GAS LEAKAGE : 0.04 cc / min (BS 7531)
FLEXIBILITY : No Break
APPROVAL AND COMPLAINCE WITH BS 7531 Grade X
INT'L SPECIFICATIONS :
IGNITION LOSS :25% Max. (DIN 52911)
DENSITY : 1.5 g/cm3
COUNTRY OF ORIGIN : UK
SHEET SIZE :Standard Dimension : 1500 x 1500mm
Upon Request : 1500 x 3000mm, 1500 x 4500mm
1500 x 1100mm
Tolerance : + - 50mm
SHEET THICKNESS :0.3 ~ 6mm
For Tolerance : <1mm +0.1mm
For Tolerance : >1mm + - 10%

SURFACE FINISH : 4AS Anti-Stick Coating On Both Sides Is Std. On Most Styles, PTFE, Graphite Or Silicon Coating Is
Request: Available Upon

Service limits are given for proper sealing conditions and gasket design. Max. temperature and pressure limits do not apply simultaneously. Lower limits must be considered when sealing aggressive media, or when thermal or mechanical disturbances are relevant. For application below -50deg. C the gasket keeps its effectiveness provided that it is installed completely dry and that flange loading is applied at room temperature.
Please note that the information here reported is based on typical results of laboratory and field tests, and it is meant to provide a non-binding guildeline for gasket selection. Given the variety of assembly and operating conditions and the multeplicity of factors affectting a gasket performance, specific applications should not be undertaken without indipendent study and evaluation. No warranty claims can be inferred from the information contained in this brochure. If requestd, we will be pleased to assist you with specific technical information and specimens for testing.


ASBESTOS FREE JOINTING SHEET
Manufactured from carefully selected chrysolite fibres, intimately blended with suitable heat resisting binders, fillers & vulcanised into sheet of homogenous compositions & uniform thickness.

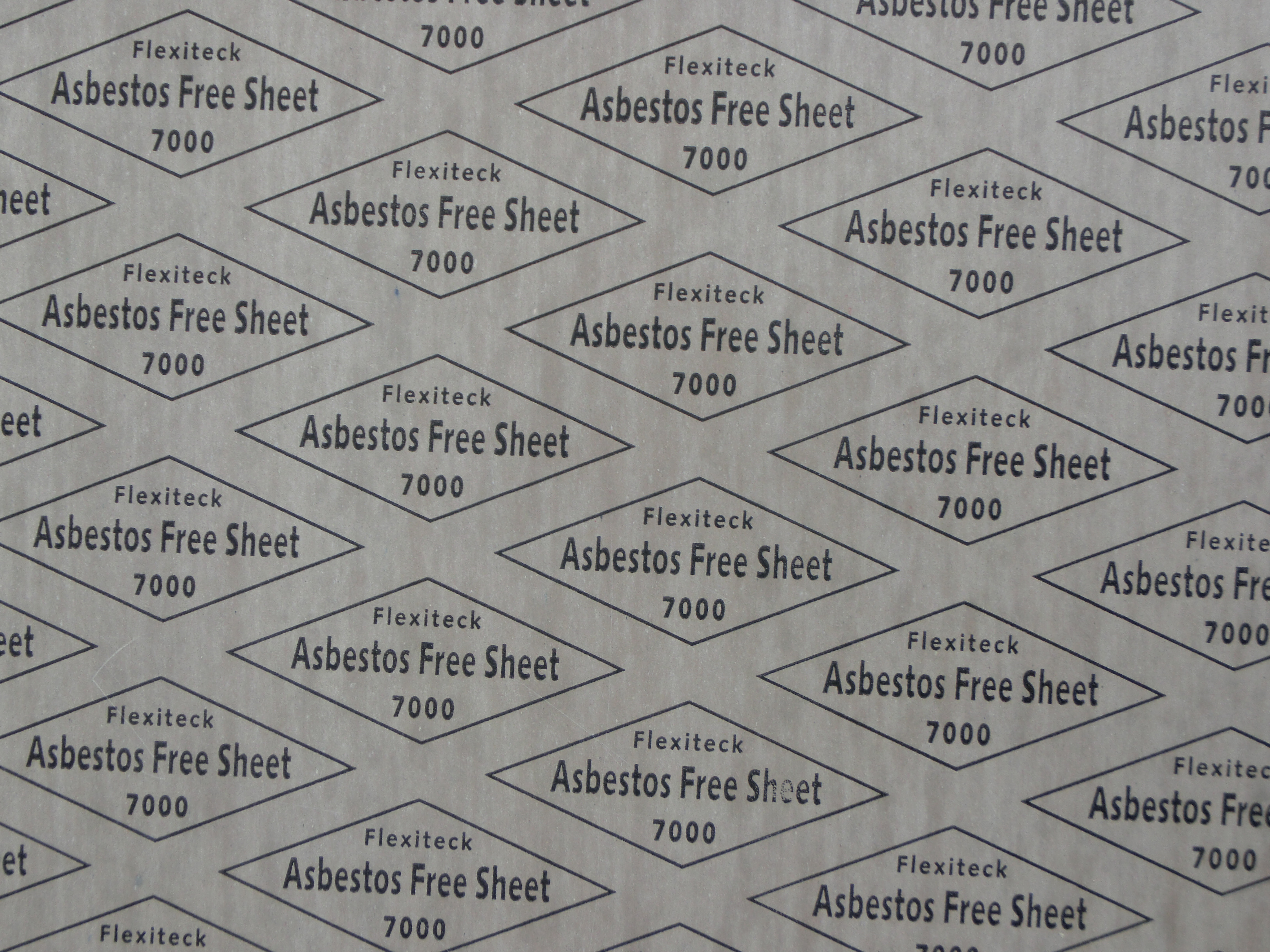

COMPRESSED SYNTHETIC aramid FIBRE JOINTING SHEET
ASBESTOS-FREE
THE PRODUCT - STYLE : Flexiteck 7000

Our Flexiteck Jointing sheet passed ASTM E1131-08 Fire Safe, analysis was performed by SGS TGA
Flexiteck CSF jointing sheets are manufactured from a viscous granular mixture of high strength ARAMID fibres, heat-resis-ant fillers and nitrile rubber binders, which is vulcanised into sheet form, under the pressure of two counter-rotating steel rollars(calender). The result is a line of highly versatile gasket materials, widely used with pipes and pressure vessels all over the world, thanks to their ability to effectively seal over an extremely broad range of service conditions. The fibres are the most crucial component. They must have high modulus and tensile strength, thermal and chemical stability, and capacity to adhere with the other components.



one side green / one side white
SEALING CONDITIONS : Material For Use In Application
Involving Hydrocarbons Such As Oils And Solvents,
Water, Steam, Gases, Dilute Acids And A Wide
Range Of General Chemicals.
TEMPERATURE : -150 ~ 450C
PRESSURE : 100Bar
SPECIFIC GRAVITY : 1.7 (DIN 3754)
TENSILE STRENGTH : 9 Mpa (9N/mm2) (ASTM F152)
COMPRESSIBILITY : 9% (ASTM F 36)
RECOVERY : 50% (ASTM F 36)
ASTM OIL #1 : Thickness Increase 2.0% Max.
ASTM OIL #3 : Thickness Increase 5.0% Max.
ASTM FUEL B, % : Thickness Increase 4.0% Max.
GAS LEAKAGE : 0.5 cc / min (BS 7531)
FLEXIBILITY : No Break
APPROVAL AND COMPLAINCE WITH BS 7531 Grade Y
INT'L SPECIFICATIONS :
IGNITION LOSS : 25% Max. (DIN 52911)
DENSITY : 2.0 g/cm3
COUNTRY OF ORIGIN : UK
SHEET SIZE : Standard Dimension : 1500 x 1500mm
Upon Request : 1500 x 3000mm, 1500 x 4500mm 1500 x 1100mm
Tolerance : + - 50mm
SHEET THICKNESS : 0.3 ~ 6mm
For Tolerance : <1mm + - 0.1mm For Tolerance : >1mm + - 10%
SURFACE FINISH : 4AS Anti-Stick Coating On Both Sides Is


Standard On Most Style PTFE, Graphite Or Silicone Coating Is Available Upon Request



Service limits are given for proper sealing conditions and gasket design. Max. temperature and pressure limits do not apply simultaneously. Lower limits must be considered when sealing aggressive media, or when thermal or mechanical disturbances are relevant. For application below -50deg. C the gasket keeps its effectiveness provided that it is installed completely dry and that flange loading is applied at room temperature. Please note that the information here reported is based on typical results of laboratory and field tests, and it is meant to provide a non-binding guideline for gasket selection. Given the variety of assembly and operating conditions and themulteplicity of factors affecting a gasket performance, specific applications should not be undertaken without independent study and evaluation. No warranty claims can be inferred from the information contained in this brochure. If requested, we will be pleased to assist you with specific technical information and specimens for testing.






COMPRESSED SYNTHETIC aramid FIBRE JOINTING SHEET
ASBESTOS-FREE

THE PRODUCT
- STYLE : Flexiteck 7000W










Our Flexiteck Jointing sheet passed ASTM E1131-08 Fire Safe, analysis was performed by SGS TGA

Flexiteck CSF jointing sheets are manufactured from a viscous granular mixture of high strength ARAMID fibres, heat-resis-tant fillers, SS wire and nitrile rubber binders, which is vulcanised into sheet form, under the pressure of two counter-rotating steel rollars(calender). The result is a line of highly versatile gasket materials, widely used with pipes and pressure vessels all over the world, thanks to their ability to effectively seal over an extremely broad range of service conditions. The fibres are the most crucial component. They must have high modulus and tensile strength, thermal and chemical stability, and capacity to adhere with the other components.


SEALING CONDITIONS : Material For Use In Application
Involving Hydrocarbons Such As Oils And Solvents,
Water, Steam, Gases, Dilute Acids And A Wide
Range Of General Chemicals.
TEMPERATURE : -150 ~ 450C
PRESSURE : 100Bar
SPECIFIC GRAVITY : 1.7 (DIN 3754)
TENSILE STRENGTH : 200Bar (19N/mm2) (ASTM F152)
COMPRESSIBILITY : 9% (ASTM F 36)
RECOVERY : 50% (ASTM F 36)
ASTM OIL #1 : Thickness Increase 2.0% Max.
ASTM OIL #3 : Thickness Increase 5.0% Max.
ASTM FUEL B, % : Thickness Increase 4.0% Max.
GAS LEAKAGE : 0.5 cc / min (BS 7531)
FLEXIBILITY : No Break
APPROVAL AND COMPLAINCE WITH BS 7531 Grade Y
INT'L SPECIFICATIONS :
IGNITION LOSS : 25% Max. (DIN 52911)
DENSITY : 2.0 g/cm3
COUNTRY OF ORIGIN : UK
SHEET SIZE : Standard Dimension : 1500 x 1500mm
Upon Request : 1500 x 3000mm, 1500 x 4500mm
1500 x 1100mm
Tolerance : + - 50mm
SHEET THICKNESS : 0.3 ~ 6mm
For Tolerance : <1mm + - 0.1mm
For Tolerance : >1mm + - 10%
SURFACE FINISH : 4AS Anti-Stick Coating On Both Sides Is
Standard On Most Styles
PTFE, Graphite Or Silicone Coating Is
Available Upon Request



Service limits are given for proper sealing conditions and gasket design. Max. temperature and pressure limits do not apply simultaneously. Lower limits must be considered when sealing aggressive media, or when thermal or mechanical disturbances are relevant. For application below -50deg. C the gasket keeps its effectiveness provided that it is installed completely dry and that flange loading is applied at room temperature. Please note that the information here reported is based on typical results of laboratory and field tests, and it is meant to provide a non-binding guildeline for gasket selection. Given the variety of assembly and operating conditions and the multeplicity of factors affectting a gasket performance, specific applications should not be undertaken without indipendent study and evaluation. No warranty claims can be inferred from the information contained in this brochure. If requestd, we will be pleased to assist you with specific technical information and specimens for testing.

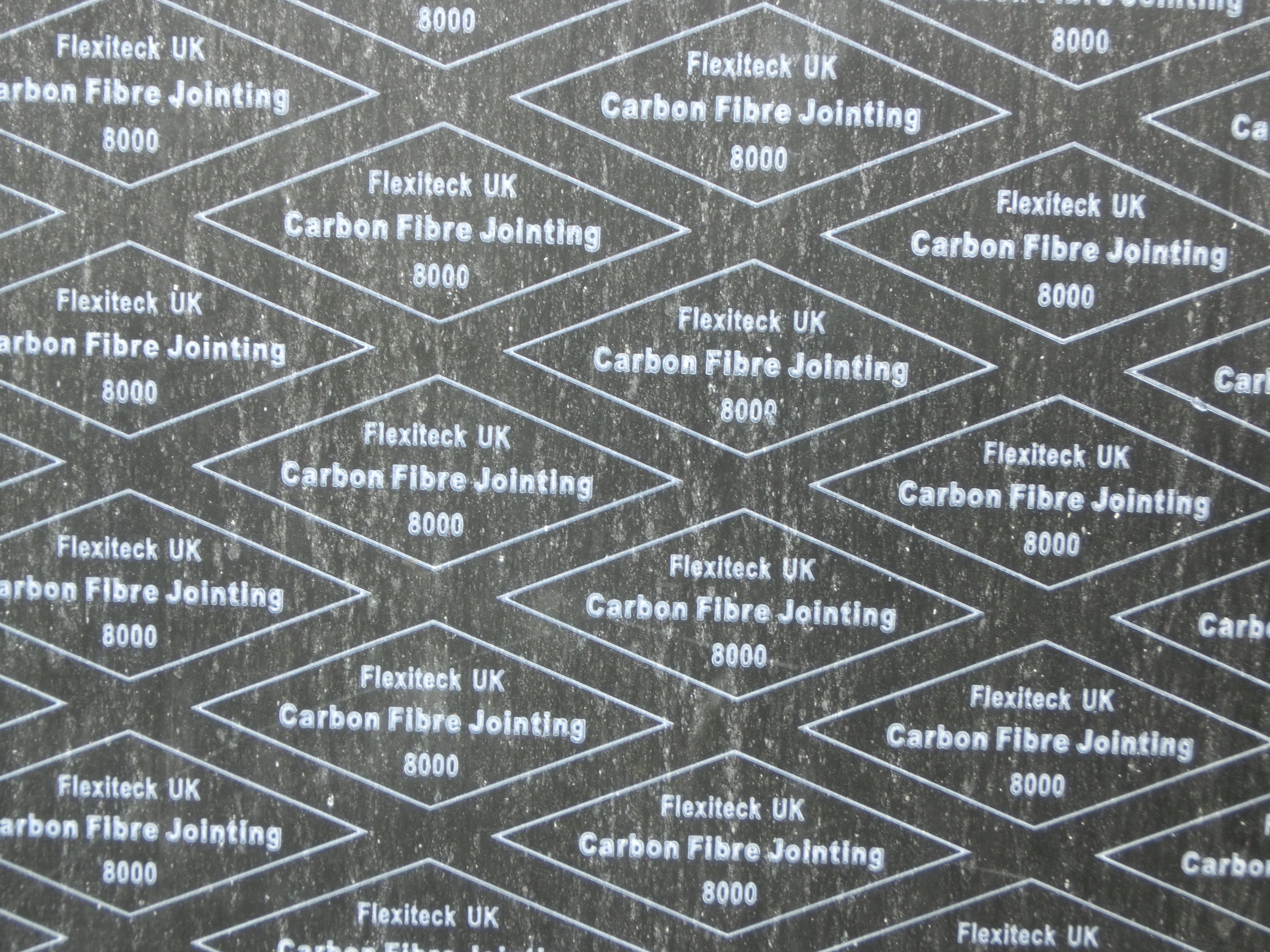

COMPRESSED SYNTHETIC carbon FIBRE JOINTING SHEET
ASBESTOS-FREE

THE PRODUCT -
STYLE : Flexiteck 8000


Our Flexiteck Jointing sheet passed ASTM E1131-08 Fire Safe, analysis was performed by SGS TGA

Flexiteck CSF jointing sheets are manufactured from a viscous granular mixture of high strength CARBON fibres, heat-resis-tant fillers and nitrile rubber binders, which is vulcanised into sheet form, under the pressure of two counter-rotating steel rollars(calender). The result is a line of highly versatile gasket materials, widely used with pipes and pressure vessels all over over the world, thanks to their ability to effectively seal over an extremely broad range of service conditions. The fibres are the most crucial component. They must have high modulus and tensile strength, thermal and chemical stability, and capacity to adhere with the other components.



SEALING CONDITIONS : For Universal Sealing Applications, Particularly
Suitable On Saturated Steam, Gases, Oils, Fuels,
Lubricants, Weak Acids And Alkalis. Suggested In
Case The Sealed Joint Undergoes Deformations
Due To Dynamic Stress Resulting From Temperature
And / Or Pressure Variations.
TEMPERATURE : -150 C ~ 500 C
PRESSURE : 100 Bar
SPECIFIC GRAVITY : 1.7 (DIN 3754)
TENSILE STRENGTH : 1350 lbf / in2 (DIN 52910)
COMPRESSIBILITY : 11% (ASTM F 36)
RECOVERY : 45% (ASTM F 36)
ASTM OIL #1 : Thickness Increase 1.0% Max.
ASTM OIL #3 : Thickness Increase 2.5% Max.
ASTM FUEL B, % : Thickness Increase 2.5% Max.
GAS LEAKAGE : 0.04 cc / min (BS 7531)
FLEXIBILITY : No Break
APPROVAL AND COMPLAINCE WITH BS 7531 Grade X
INT'L SPECIFICATIONS :
IGNITION LOSS : 25% Max. (DIN 52911)
DENSITY : 1.5 g/cm3
COUNTRY OF ORIGIN : UK
SHEET SIZE : Standard Dimension : 1500 x 1500mm
Upon Request : 1500 x 3000mm, 1500 x 4500mm
1500 x 1100mm
Tolerance : + - 50mm
SHEET THICKNESS : 0.3 ~ 6mm
For Tolerance : <1mm + - 0.1mm
For Tolerance : >1mm + - 10%
SURFACE FINISH : 4AS Anti-Stick Coating On Both Sides Is Std. On Most
Styles, PTFE, Graphite Or Silicon Coating Is
Available Upon Request


Service limits are given for proper sealing conditions and gasket design. Max. temperature and pressure limits do not apply simultaneously. Lower limits must be considered when sealing aggressive media, or when thermal or mechanical disturbances are relevant. For application below -50deg. C the gasket keeps its effectiveness provided that it is installed completely dry and that flange loading is applied at room temperature. Please note that the information here reported is based on typical results of laboratory and field tests, and it is meant to provide a non-binding guildeline for gasket selection. Given the variety of assembly and operating conditions and the multeplicity of factors affectting a gasket performance, specific applications should not be undertaken without indipendent study and evaluation. No warranty claims can be inferred from the information contained in this brochure. If requestd, we will be pleased to assist you with specific technical information and specimens for testing.






COMPRESSED SYNTHETIC carbon FIBRE JOINTING SHEET
ASBESTOS-FREE

THE PRODUCT - STYLE : Flexiteck 8000W














Our Flexiteck Jointing sheet passed ASTM E1131-08 Fire Safe, analysis was performed by SGS TGA

Flexiteck CSF jointing sheets are manufactured from a viscous granular mixture of high strength CARBON fibres, heat-resis-tant fillers and nitrile rubber binders, which is vulcanised into sheet form, under the pressure of two counter-rotating steel rollars(calender), with SS wire reinforced. The result is a line of highly versatile gasket materials, widely used with pipes and pressure vessels all over the world, thanks to their ability to effectively seal over an extremely broad range of service conditions. The fibres are the most crucial component. They must have high modulus and tensile strength, thermal and chemical stability, and capacity to adhere with the other components.


SEALING CONDITIONS : For Universal Sealing Applications, Particularly
Suitable On Saturated Steam, Gases, Oils, Fuels,
Lubricants, Weak Acids And Alkalis. Suggested In
Case The Sealed Joint Undergoes Deformations
Due To Dynamic Stress Resulting From Temperature
And / Or Pressure Variations.
TEMPERATURE : -150 C ~ 500 C
PRESSURE : 100 Bar
SPECIFIC GRAVITY : 1.7 (DIN 3754)
TENSILE STRENGTH : 200Bar (DIN 52910)
COMPRESSIBILITY : 11% (ASTM F 36)
RECOVERY : 45% (ASTM F 36)
ASTM OIL #1 : Thickness Increase 1.0% Max.
ASTM OIL #3 : Thickness Increase 2.5% Max.
ASTM FUEL B, % : Thickness Increase 2.5% Max.
GAS LEAKAGE : 0.04 cc / min (BS 7531)
FLEXIBILITY : No Break
APPROVAL AND COMPLAINCE WITH BS 7531 Grade X
INT'L SPECIFICATIONS :
IGNITION LOSS : 25% Max. (DIN 52911)
DENSITY : 1.5 g/cm3
COUNTRY OF ORIGIN : UK
SHEET SIZE : Standard Dimension : 1500 x 1500mm
Upon Request : 1500 x 3000mm, 1500 x 4500mm
1500 x 1100mm
Tolerance : + - 50mm
SHEET THICKNESS : 0.3 ~ 6mm
For Tolerance : <1mm + - 0.1mm
For Tolerance : >1mm + - 10%
SURFACE FINISH : 4AS Anti-Stick Coating On Both Sides Is Std. On Most
Styles, PTFE, Graphite Or Silicon Coating Is
Available Upon Request

Service limits are given for proper sealing conditions and gasket design. Max. temperature and pressure limits do not apply simultaneously. Lower limits must be considered when sealing aggressive media, or when thermal or mechanical disturbances are relevant. For application below -50deg. C the gasket keeps its effectiveness provided that it is installed completely dry and that flange loading is applied at room temperature. Please note that the information here reported is based on typical results of laboratory and field tests, and it is meant to provide a non-binding guildeline for gasket selection. Given the variety of assembly and operating conditions and the multeplicity of factors affectting a gasket performance, specific applications should not be undertaken without indipendent study and evaluation. No warranty claims can be inferred from the information contained in this brochure. If requestd, we will be pleased to assist you with specific technical information and specimens for testing.







UKAS
ISO
iAF
Flexitech
